CUSTOM CFI FILTER HOUSINGS

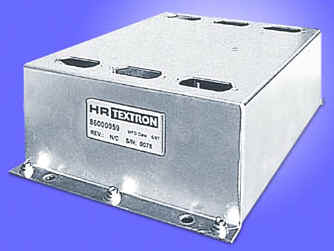

Blade Height Control Box

End User: Lawn Mower Manufacturer
Material: 060 thick CRS
Size: L: 12.00  W 8.00   H: 3.70
Tolerances: .xx +- .030
.xxx +- .010
Welding: Tig Welding per MIL-STD-454
Finish:  Zinc Plate per best commercial practices
Hardware:   PEM floating clinch nuts
These boxes are watertight, and are supplied with a lid and neoprene gasket. They enclose an electronic blade height control used on golf course lawn mowers. These enclosures must be rugged and be able to withstand weather and elements.

Motor Control Enclosure

End User:    Locomotive Manufacturer
Material: .060 thick CRS
Size: L: 11.50  W: 9.25   H: 6.01
Tolerances: .xx +- .030  .xxx +- .005

Welding: Tig Welding per MIL-STD-454
Finish: Yellow zinc chromate per ASTM B633/85 Type II,
Black Epoxy Powder Coat. White Silkscreen
Hardware:
  PEM clinch nuts and studs
These enclosures are hermetically sealed, and are supplied with lid and neoprene gasket.   Welded seams must be smooth, free of voids and edges must be rounded to match other edges. This is a rugged, yet a low tolerance box made to military specifications.

Motor Control Housing


Material: .030 thick CRS
Size: L: 3.91  W: 3.50  H: 1.66
Tolerances: .xx +-.020 .xxx +- .005

Welding:  Tig Welding per MIL-STD-454
Finish:  CopperPlate per MIL-C-14550B, Tin-lead Plate and Fuse per MIL-T-10727
Hardware:
  Brass stud and brass internal thread inserts silver brazed to can.
The radius cut out on the bottom of the can fits on and is bolted to the back of a motor. All corner seams are TIG welded, the 4-4OUNC-2B inserts and 1/4-28UNF-2A stud and nut are silver brazed to form a watertight compartment. The inside partition is spotwelded in place.
